As the CDE is provided as an Eclipse P2 repository, it can be installed from the CDE Eclipse update site. The Eclipse plugin and Curl RTE installers can both be acquired from the CDE Eclipse update site, in which case the Curl installer will be launched via the CDE plugin. For the URL of CDE Eclipse update site, please contact our support center

Before installing the CDE, please install Eclipse. A matching JVM version must also be installed. Su / Oracle JDK 1.8+ is recommended）.

Users using old versions of Eclipse might meet signature verification error, see here for a workaround.

  1. Eclipse Installation
  2. CDE Installation

1. Installation for Eclipse

2. CDE Installation

  1. Start Eclipse.
  2. Select [ Help > Install New Software... ] .
  3. From the installation dialog show below, press the [ Add ] button and enter the values shown into the [ Add Repository ] dialog.
    For Location, enter the URL of the CDE Eclipse update site. Information on the CDE Eclipse update site can be acquired by contact our support center
    Name:　CDE
    Location:　Update Site URL

    Add Repository

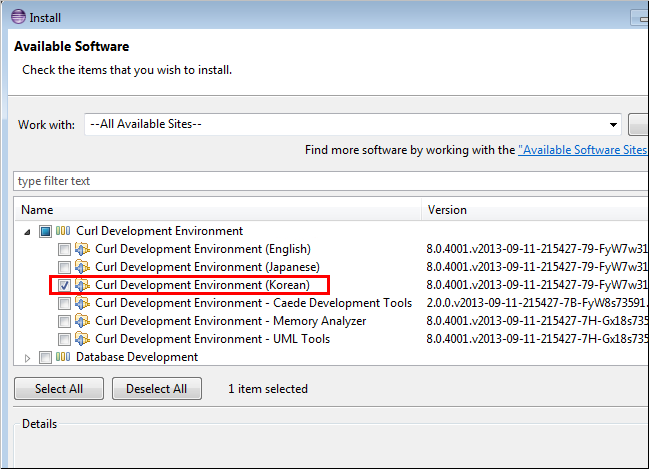

  4. A list of available plugins will be shown. Select the following.
    • Curl Development Environment

    Curl Development Environment

    Note 1: A Curl Development Environment for one of the supported languages (English, Japanese, Korean) must be installed. Optional installs (which can be installed later as well) are: "UML Tools", and "Memory Analyzer." If installing UML Tools or the Memory Analyzer, please check the “Contact all update sites during install to find required software” button, which will automatically download the plugins for EMF, UML, JET, and MAT.

    If you are installing "UML tools" to Eclipse 4.2+, before your installation starts, you will need the following additional settings in Eclipse:
    (i) Select menu "Help" -> "Install New Software..."
    (ii) Click the "Add" button on the dialog, then add the following URL to your "Available Software Sites" list:
    http://download.eclipse.org/modeling/m2t/updates/releases/
    (this JET repository is not longer provided in Eclipse 4.2+ by default)
    (iii) Click the "Add" button and close the settings dialog, then proceed with your CDE installation.

    Note 2: If an error occurs during signature verification (e.g., Error reading signed content)

  5. Follow the dialog directions to install.

    ※ On error during installation, see Known installation issues.

  6. Restart Eclipse.
  7. When opening a Curl perspective or otherwise using CDE features, the CDE plugin will start.
  8. If using the CDE for the first time, please see the CDE overview or tutorial.
    • From the Eclipse menu, Select “Help -> Help Contents”.
    • The Eclipse help window will open. Select “Curl Development User Guide”.
  9. After Eclipse has restarted, The Curl IDE/RTE installer will run; follow its directions to install.
  10. The CDE installation has completed!
    Select [ Window / Open / Other… ] , select Curl from the dialog and press the [ OK ] button to open the Curl perspective.

2-2. Updating from earlier versions of the CDE to the most recent CDE

Before updating to the most recent version of the CDE, it is recommended to uninstall your currently installed version of the CDE.
From the Eclipse menu bar, select “Help / Check for Updates”, then follow displayed directions to update. The CDE update process is basically the same as the First-time CDE Installation process detailed above. (Similarly, after restarting Eclipse, the Curl installer will run.)
